Facade Metal Mesh
Feature
Specification
Project
Technical support
Brief

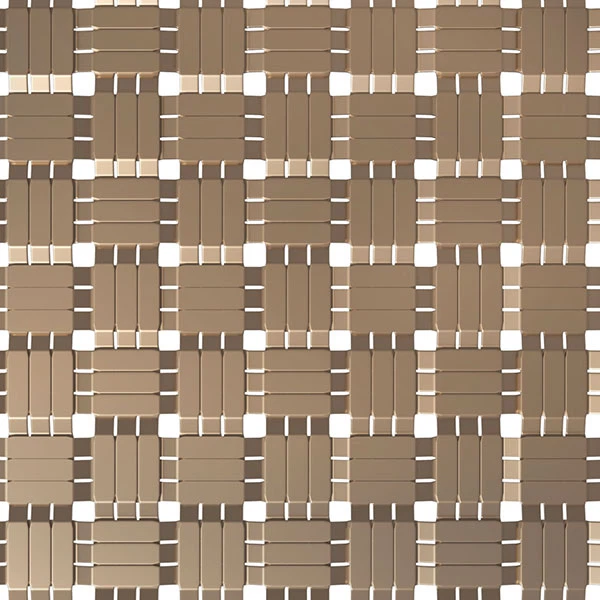

Our highly favored Cable Rod Woven Mesh features a maximum width of 8 meters and flexible length customization, perfectly catering to exterior facade projects. With cable and rod diameters ranging from 1-5mm, cable spacing of 20-200mm, rod spacing of 6-20mm. It can be colored as a whole, or the rods can be colored individually.Colors include stainless steel, copper, and gold, this mesh combines versatile specifications with aesthetic appeal, making it the preferred choice for curtain wall decoration.
As a renowned architectural wire mesh system supplier, JOYA Wire Mesh delivers design and manufacturing services for wire meshes and fixing systems to global clients. And cable and rod flexible mesh is made from SS316, SS316L, and other alloys. It combines soft, flexible metal cables with durable metal rods to form a flat and strong mesh surface. It provides architectural projects with solutions that balance functionality and aesthetic value.
Feature and advance
Flat, Flexible, Smooth Surface, Simple, Durable, Green and Economical Material, Customized, Easy and simple to fix and clean
Application
- Metal façade
- Metal ceiling
- Wall decoration
- Metal partition
- Metal frame
Hot Tags: facade metal mesh, China facade metal mesh manufacturers, suppliers, factory, Flat Wire Mesh, Interior Cladding Metal Mesh, Metal Fabric Wire Mesh, Silver Mesh, Wire Mesh Grill, Woven Mesh Partition
Specification
- Cable dia: 0.3 to 3mm
- Rod dia: 0.4 to 4mm
- Cable pitch: 0.3mm to 110mm
- Rod pitch: 0.5 to 15mm
- Material: steel, zinc wire, SS304, SS316,316L, other alloy
- Surface finished: PVD, painted, power coated and so on
Project
As a architectural wire mesh system supplier, JoYa wire mesh takes part in many important projects, such as Abu Dhabi Airport, Asian development bank and so on. For the mesh projects, will hear enough the sound from customers(designer, owner, contractor), learn and understand the spirit, why so, then work together with our partners to satisfy with requirement.
Technical support
1.WOVEN--IN-BAR-WITH-DOUBLE-EYEBOLTS
For rod and rope wire mesh.The top customized fixings are fixed with bolts, the upper and lower parts of the mesh are connected to the fixings with customized bolts through round rods, and the lower spring is used to adjust the tightness of the mesh.
2.FRAME WITH DOUBLE EYEBOLTS
For rod and rope wire mesh.The top customized fixings are fixed to the top structure with bolts, the upper part of the mesh is passed through a round rod and connected to the top customized fixings with customized bolts, and the lower part of the mesh is passed through a round rod and fixed with positive and negative thread bolts. The positive and negative thread bolts are used to adjust the tightness of the mesh surface.
3.EXTENDED- LOOP BAR EYEBOLT
